Grid — large datasets with RowRequest()

A table of thousands of records shouldn't be loaded all at once. KCML grids support deferred loading: you load an initial block, set DataPending = TRUE, and the grid raises a RowRequest() event when the user scrolls near the bottom — your handler loads the next block. This page loads 500 parts, 25 at a time.

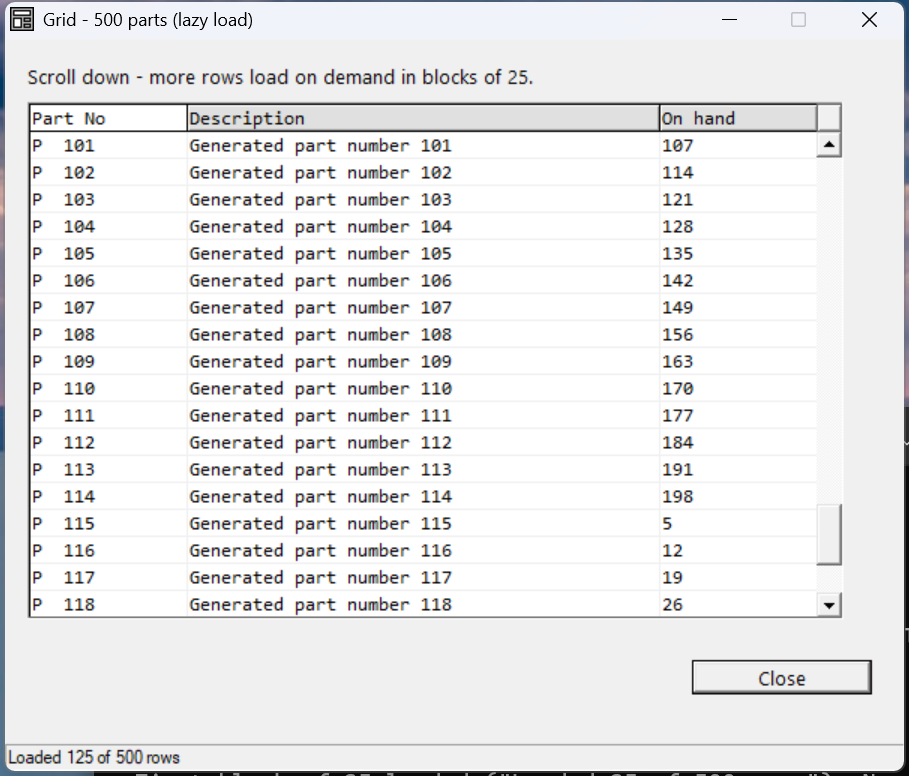

A grid scrolled to rows 101-118 of generated parts, with the status bar reading 'Loaded 125 of 500 rows'.

Verified by execution on KCML 06.00.88 — scrolling pulled blocks in on demand up to 125 of 500.

What it demonstrates

The program

01000 REM demo_grid_large - deferred row loading with RowRequest() / DataPending
    : DIM result, loaded, total, i, blk
    : loaded = 0
    : total = 500
01010 - DEFFORM GridLarge()=\
       {.form,.form$,.Style=0x50c000c4,.Width=400,.Height=300,.Text$="Grid - 500 parts (lazy load)",.Id=1024},\
       {.grid,.KCMLgrid$,.Style=0x50013030,.Left=10,.Top=26,.Width=375,.Height=215,.Id=1000,.Rows=1,.Cols=3,.FixedRows=1,.Font=.Mono},\
       {.btnClose,.button$,.Style=0x50010001,.Left=305,.Top=255,.Width=80,.Height=14,.Text$="Close",.Id=1,.Font=.UI},\
       {.paneStatus,.status$,.Width=400,.Style=0x50000000,.Text$="Ready"},\
       {.UI,.dlgfont$,.Name$="Segoe UI",.Size=10},\
       {.Mono,.dlgfont$,.Name$="Consolas",.Size=10},\
       {.clrHdr,.color$,.Red=224,.Green=224,.Blue=224}
    :     + DEFEVENT GridLarge.Enter()
    :         .grid.Cell(0,1).ColWidth = 70
    :         .grid.Cell(0,2).ColWidth = 210
    :         .grid.Cell(0,3).ColWidth = 70
    :         .grid.Cell(1,1).Text$ = "Part No"
    :         .grid.Cell(1,2).Text$ = "Description"
    :         .grid.Cell(1,3).Text$ = "On hand"
    :         .grid.Cell(1,1).BackColor = &.clrHdr
    :         .grid.Cell(1,2).BackColor = &.clrHdr
    :         .grid.Cell(1,3).BackColor = &.clrHdr
    :         GOSUB 'LOAD_BLOCK()
    :     END EVENT
    :     + DEFEVENT GridLarge.grid.RowRequest()
    :         GOSUB 'LOAD_BLOCK()
    :     END EVENT
    : FORM END GridLarge
01020 result = GridLarge.Open()
    : $END
01500 DEFFN 'LOAD_BLOCK()
    : FOR i = 1 TO 25
    :     IF loaded < total THEN DO
    :         loaded = loaded + 1
    :         blk = GridLarge.grid.Rows + 1
    :         GridLarge.grid.Rows = blk
    :         GridLarge.grid.Cell(blk,1).Text$ = $PRINTF("P%05d", loaded)
    :         GridLarge.grid.Cell(blk,2).Text$ = $PRINTF("Generated part number %d", loaded)
    :         GridLarge.grid.Cell(blk,3).Text$ = $PRINTF("%d", MOD(loaded*7, 200))
    :     END DO
    : NEXT i
    : IF loaded < total THEN GridLarge.grid.DataPending = TRUE
    : IF loaded >= total THEN GridLarge.grid.DataPending = FALSE
    : GridLarge.paneStatus.Text$ = $PRINTF("Loaded %d of %d rows", loaded, total)
    : RETURN

How it works

The loop is in a shared subroutine. 'LOAD_BLOCK() appends up to 25 rows by growing .grid.Rows and filling each new row. Both Enter() (first block) and RowRequest() (subsequent blocks) GOSUB to it, so there's one place that knows how to fetch a block. In a real app it reads the next records from a KISAM file instead of generating them.

DataPending drives RowRequest(). Set .grid.DataPending = TRUE while more rows remain — the grid then fires RowRequest() as the user scrolls toward the end. When the source is exhausted, set DataPending = FALSE and the grid stops asking. In testing, scrolling pulled blocks in until the status showed "Loaded 125 of 500".

Referencing controls from a DEFFN. The subroutine sits outside the form block, so it uses the full control path (GridLarge.grid…, GridLarge.paneStatus…) rather than the .grid shorthand that only works inside the form's own events.

Note: the row-loading guard uses IF loaded < total THEN DO … END DO rather than RETURN inside the FOR loop — a bare RETURN inside an IF…THEN raises error A07, so structure the exit with a DO block or a flag.
